Using the Product Reference Number as a Barcode

Using my Dolibarr
1

Hello,

I want to use Reference Number as a Barcode value. Is there a any way to auto fill to barcode value? Thank you.

2

Hi,
if you want to have the ref as a barcode then that is possible via javascript…

You have to edit the source ~htdocs\product\card.php
Search for

		print dol_get_fiche_head('');

		print '<table class="border centpercent">';

		if (empty($conf->global->PRODUCT_GENERATE_REF_AFTER_FORM)) {

and insert the following code after the “{” :

			print '<script type="text/javascript">
			$(document).on("input", "#ref", function () {
				var new_qrcode = $("#ref").val();
				$("#barcode").val(new_qrcode);
			});
			</script>';

As a result, the barcode is automatically filled in when the product reference is entered during new product creation.

3

Thanks for your help but it is not work.

My code is

print dol_get_fiche_head('');

		print '<table class="border centpercent">';

		if (empty($conf->global->PRODUCT_GENERATE_REF_AFTER_FORM)) {

				print '<script type="text/javascript">
			$(document).on("input", "#ref", function () {
				var new_qrcode = $("#ref").val();
				$("#barcode").val(new_qrcode);
			});
			</script>';

			print '<tr>';
			$tmpcode = '';

			if (!empty($modCodeProduct->code_auto)) {
				$tmpcode = $modCodeProduct->getNextValue($object, $type);
			}
4

We use it in Version 17.0.2 without problems
Please check if you have set the global variable PRODUCT_GENERATE_REF_AFTER_FORM

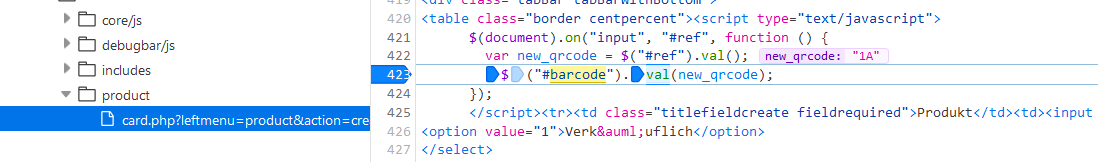

And you can also debug the javascript with your browser tools to see if the script is triggered.

grafik
grafik1098×162 15.4 KB

5

i am using 22.0.2, i could not find such lines in card.php :face_exhaling:

print dol_get_fiche_head(‘’);

	print '<table class="border centpercent">';

	if (empty($conf->global->PRODUCT_GENERATE_REF_AFTER_FORM)) {
6

you can find the “PRODUCT_GENERATE_REF_AFTER_FORM” in line 1504

	// Call Hook tabContentCreateProduct
	$parameters = array();
	// Note that $action and $object may be modified by hook
	$reshook = $hookmanager->executeHooks('tabContentCreateProduct', $parameters, $object, $action);
	if (empty($reshook)) {
		print '<table class="border centpercent">';

		if (!getDolGlobalString('PRODUCT_GENERATE_REF_AFTER_FORM')) {

and insert the following code after the “{” :

			print '<script type="text/javascript">
			$(document).on("input", "#ref", function () {
				var new_qrcode = $("#ref").val();
				$("#barcode").val(new_qrcode);
			});
			</script>';
7

Thanks a lot for the guidence.

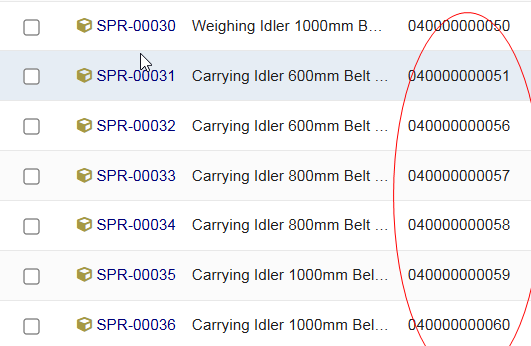

It is showing while creating a new product, but not in existing product while listing / browsing individual

image642×374 11.1 KB

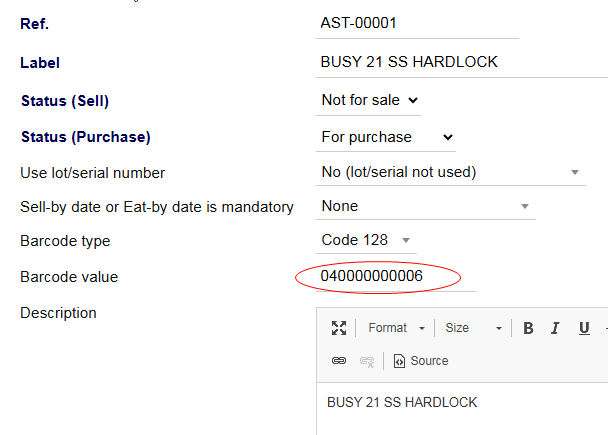

but not in existing saved products

image608×435 11.9 KB

8

That’s right, only when creating a new product is the “Barcode value” field filled in with the value entered in the “Ref” field.

9

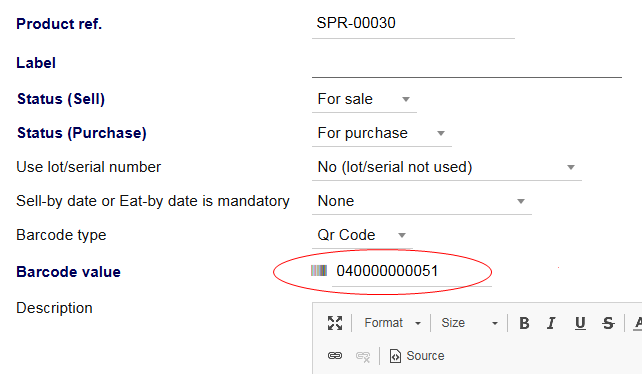

No. i find it a serially increased value, not the barcode value against Ref.

image531×346 16.1 KB

10

I would rather use a ulid as the barcode - possibly generating one when creating a product
