Missing BBAN/Branch Code fields for Canada in v22.0.4

[Stejimenez]

Environment:

• Dolibarr Version: 22.0.4
• Operating System: macOS 26.2 (Apple M4 Pro)
• Web Browser: Safari 26.2
• Installation Type: Standard (Softaculous/Manual - adjust as needed)

Problem Description: I am setting up a Canadian distribution company and need to record vendor bank details using the Canadian format (3-digit Institution number + 5-digit Transit number + Bank Account number).

Despite setting the Third Party country to Canada (CA), the “Bank Accounts” tab only displays IBAN and BIC fields. The domestic “Bank Code” and “Branch Code” fields are nowhere to be found.

Troubleshooting Performed:

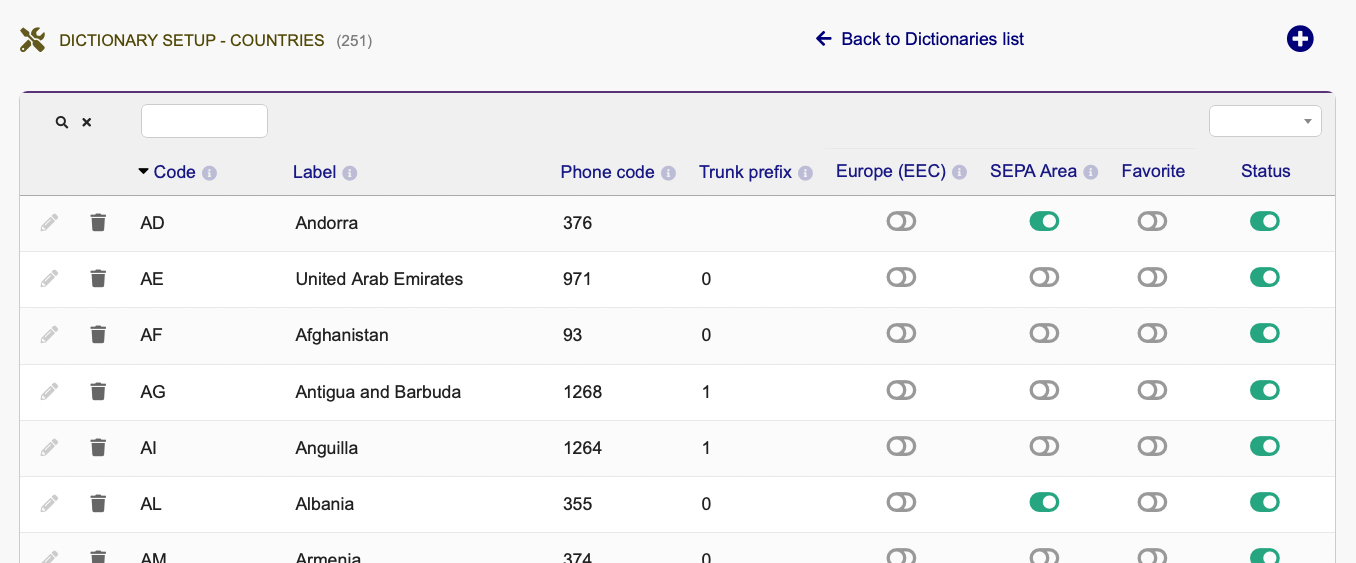

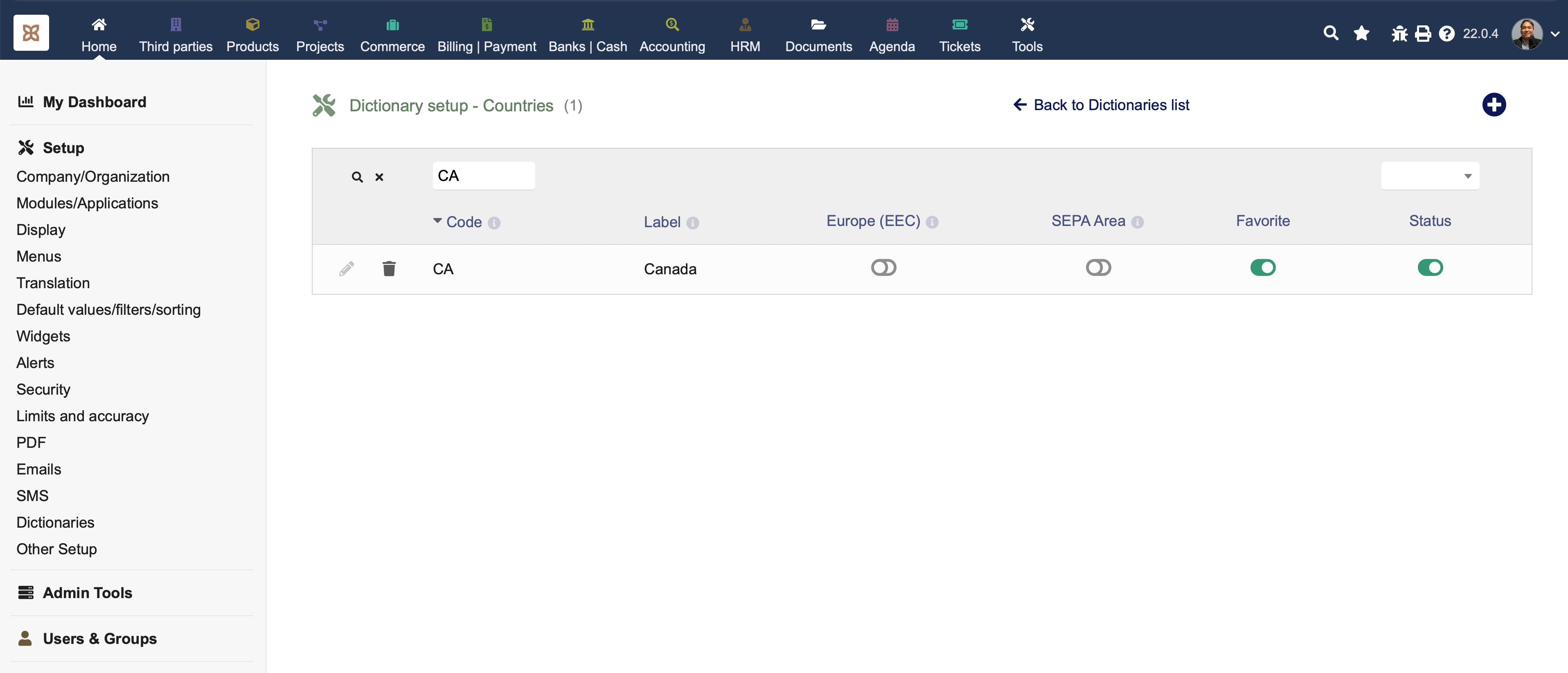

1. Dictionary Setup: Navigated to Setup > Dictionaries > Countries. When editing Canada, the “Bank account format” field is not visible. Only EEC and SEPA checkboxes are present.
2. Database Inspection: I queried the llx_c_country table. The column format_rib (or bank_format) is entirely missing from the schema. The available columns are: rowid, code, code_iso, Numeric_code, Label, eec, sepa, active, favorite.
3. Module Configuration: Checked Bank/Cash module setup. The option to “Display order of bank accounts for countries using detailed bank number” set to “General” does not resolve the field visibility for Canadian vendors and my own bank accounts.
4. Hidden Variables: I have already set MAIN_IBAN_IS_NEVER_MANDATORY = 1 in Other Setup. This allows me to save records with a blank IBAN, but it does not reveal the missing Branch/Transit code fields.

Questions:

1. In Dolibarr 22, where has the banking format logic moved if it is no longer in the c_country table?
2. Is there a specific SQL command or hidden constant to force the BBAN (Bank/Branch/Account) layout for non-SEPA countries like Canada in this version?
3. Is this a known schema issue in v22.0.4 with Safari, or am I missing a localization module specific to North America?

Thank you for your assistance.

Best Regards,

Sterling

[jonbendtsen]

Edit:

Below is probably incorrect, it could be this definition:

htdocs/install/mysql/tables/llx_bank_account.sql

The banking records are stored in the llx_societe_rib table which is defined here dolibarr/htdocs/install/mysql/tables/llx_societe_rib.sql at develop · Dolibarr/dolibarr · GitHub

maybe it would make more sense to add the format to this table - because some companies might have bank accounts in different countries?

[Stejimenez]

Hello Jon,

Thanks for your reply!

I definitely understand that the .sql creates the table. In my case, the table seems to be created correctly:

Field	Type	Null	Key	Default	Extra
rowid	int(11)	NO	PRI	NULL	auto_increment
entity	int(11)	NO	MUL	1
type	varchar(32)	NO		ban
label	varchar(180)	YES		NULL
fk_soc	int(11)	NO	MUL	NULL
datec	datetime	YES		NULL
tms	timestamp	NO		current_timestamp()	on update current_timestamp()
bank	varchar(255)	YES		NULL
code_banque	varchar(128)	YES		NULL
code_guichet	varchar(6)	YES		NULL
number	varchar(255)	YES		NULL
cle_rib	varchar(5)	YES		NULL
bic	varchar(20)	YES		NULL
bic_intermediate	varchar(11)	YES		NULL
iban_prefix	varchar(100)	YES		NULL
cci	varchar(100)	YES		NULL
domiciliation	varchar(255)	YES		NULL
proprio	varchar(60)	YES		NULL
owner_address	varchar(255)	YES		NULL
default_rib	smallint(6)	NO		0
state_id	int(11)	YES		NULL
fk_country	int(11)	YES		NULL
currency_code	varchar(3)	YES		NULL
model_pdf	varchar(255)	YES		NULL
last_main_doc	varchar(255)	YES		NULL
rum	varchar(32)	YES		NULL
date_rum	date	YES		NULL
frstrecur	varchar(16)	YES		FRST
last_four	varchar(4)	YES		NULL
card_type	varchar(255)	YES		NULL
cvn	varchar(255)	YES		NULL
exp_date_month	int(11)	YES		NULL
exp_date_year	int(11)	YES		NULL
country_code	varchar(10)	YES		NULL
approved	int(11)	YES		0
email	varchar(255)	YES		NULL
ending_date	date	YES		NULL
max_total_amount_of_all_payments	double(24,8)	YES		NULL
preapproval_key	varchar(255)	YES		NULL
starting_date	date	YES		NULL
total_amount_of_all_payments	double(24,8)	YES		NULL
stripe_card_ref	varchar(128)	YES		NULL
stripe_account	varchar(128)	YES		NULL
ext_payment_site	varchar(128)	YES		NULL
extraparams	varchar(255)	YES		NULL
date_signature	datetime	YES		NULL
online_sign_ip	varchar(48)	YES		NULL
online_sign_name	varchar(64)	YES		NULL
comment	varchar(255)	YES		NULL
ipaddress	varchar(68)	YES		NULL
status	int(11)	NO		1
import_key	varchar(14)	YES		NULL

The problem I can see is that the table has 0 rows.

My question is: how can I force or enable these fields to be shown on the bank account creation screen (Canadian format: 3-digit Institution number + 5-digit Transit number + Bank Account number)? I can see the field names in the database, but nowhere to be updated in the UI :

bank	varchar(255)	YES		NULL
code_banque	varchar(128)	YES		NULL
code_guichet	varchar(6)	YES		NULL
number	varchar(255)	YES		NULL

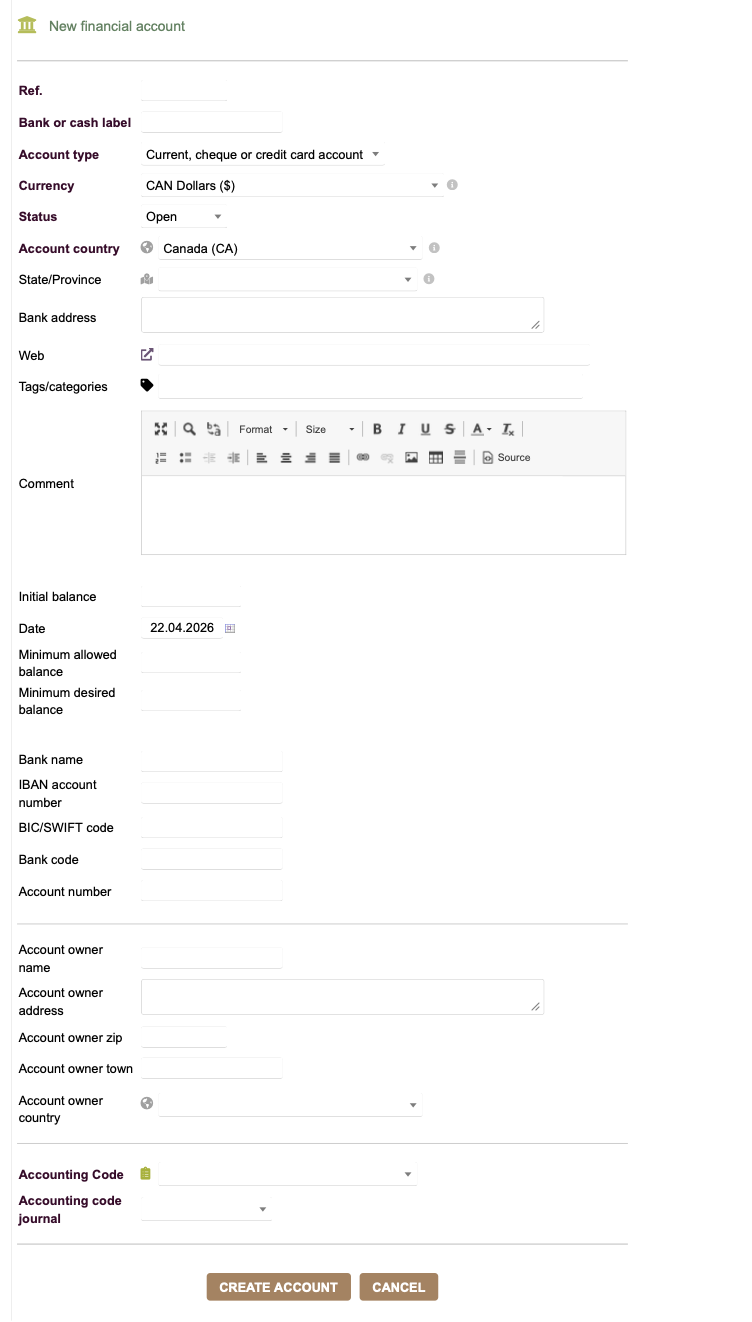

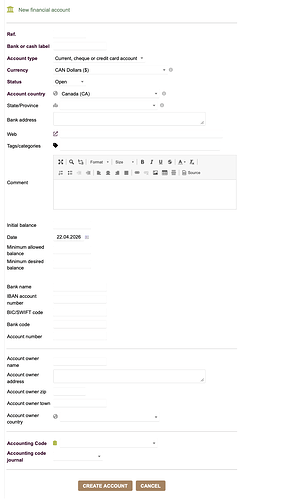

All I’m getting is this screen:

Thanks again for your help!

Sterling

[jonbendtsen]

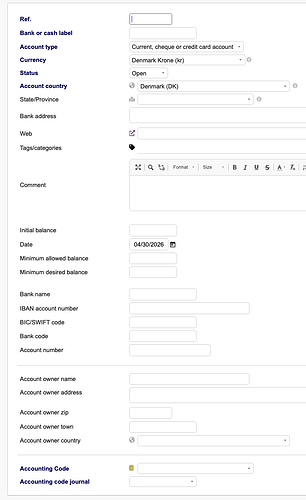

am i correct in that that screenshot is this page /compta/bank/card.php?action=create @Stejimenez ?

if so that page works on Account objects which are stored in the table called bank_account which has this definition:

htdocs/install/mysql/tables/llx_bank_account.sql

[jonbendtsen]

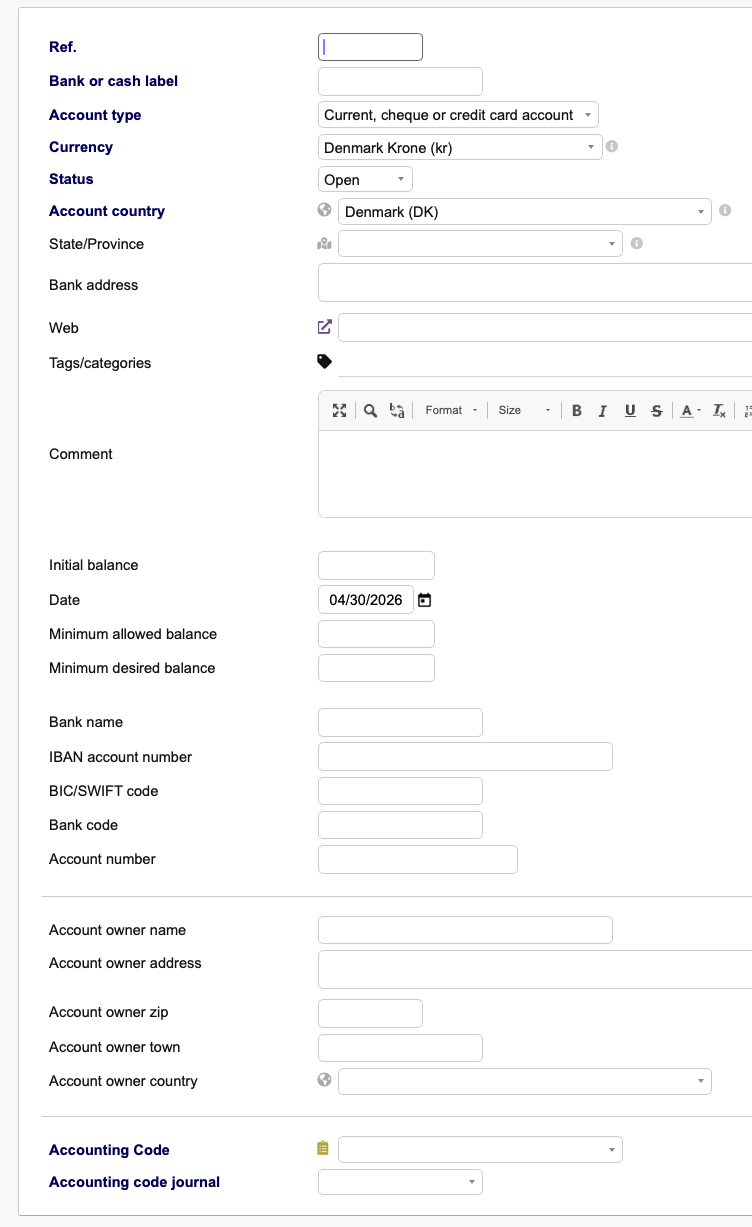

I think that it is these fields you are mentioning

and I think that would be these lines

		// IBAN
		print '<tr><td>'.$langs->trans($ibankey).'</td>';
		print '<td><input maxlength="34" type="text" class="flat minwidth300" name="iban" value="'.(GETPOSTISSET('iban') ? GETPOST('iban', 'alpha') : $object->iban).'"></td></tr>';

		// BIC
		print '<tr><td>'.$langs->trans($bickey).'</td>';
		print '<td><input maxlength="11" type="text" class="flat minwidth150" name="bic" value="'.(GETPOSTISSET('bic') ? GETPOST('bic', 'alpha') : $object->bic).'"></td></tr>';

		// Show fields of bank account
		$sizecss = '';
		foreach ($object->getFieldsToShow() as $val) {
			$content = '';
			if ($val == 'BankCode') {
				$name = 'code_banque';
				$sizecss = 'minwidth100';
				$content = $object->code_banque;
			} elseif ($val == 'DeskCode') {
				$name = 'code_guichet';
				$sizecss = 'minwidth100';
				$content = $object->code_guichet;
			} elseif ($val == 'BankAccountNumber') {
				$name = 'number';
				$sizecss = 'minwidth200';
				$content = $object->number;
			} elseif ($val == 'BankAccountNumberKey') {
				$name = 'cle_rib';
				$sizecss = 'minwidth50';
				$content = $object->cle_rib;
			} else {
				$name = 'undefined';
				$sizecss = 'undefined';
				$content = 'undefined';
			}

line 573 to 605 in the file behind the page I was asking about above

[Stejimenez]

Hello Jonbendtsen,

Thanks for your reply!

Yes, the screen appears in my address: Dolibarr.MyWebsite.com/compta/bank/card.php?action=create

The issue is that In North America we use three fields to Identify Bank Accounts for EFT purposes and all wire transfer:

• 3-digit Institution number (code_banque)
• 5-digit Transit number (code_guichet)
• Bank Account number (number)

Me and the AI (Claude) I’m using to configure my Dolibarr instance, believed that the options shown in the screen ( Dolibarr.MyWebsite.com/compta/bank/card.php?action=create ) are tied to the Company’s Country as defined in the Country Dictionary.

The question is how to make Dolibarr show these fields (code_banque, code_guichet, and number) instead of the European Banking Fields that should only be shown when (IBAN account number, BIC/SWIFT code) when you set the country option to EEC or SEPA in the Country Dictionary?

Activating or de-activating the “Europe (ECC)” or “SEPA Area” seems to do nothing at all to that screen.

All the best,

Sterling

[Kim_KW1975]

Hi Sterling,

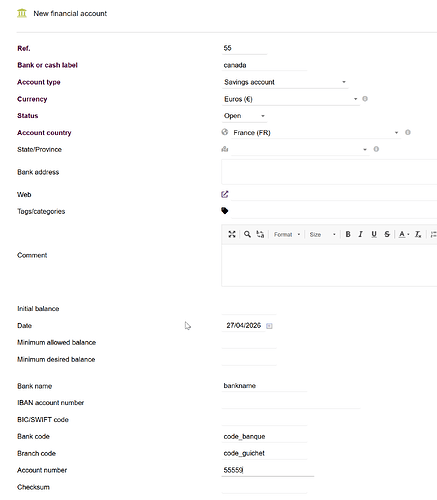

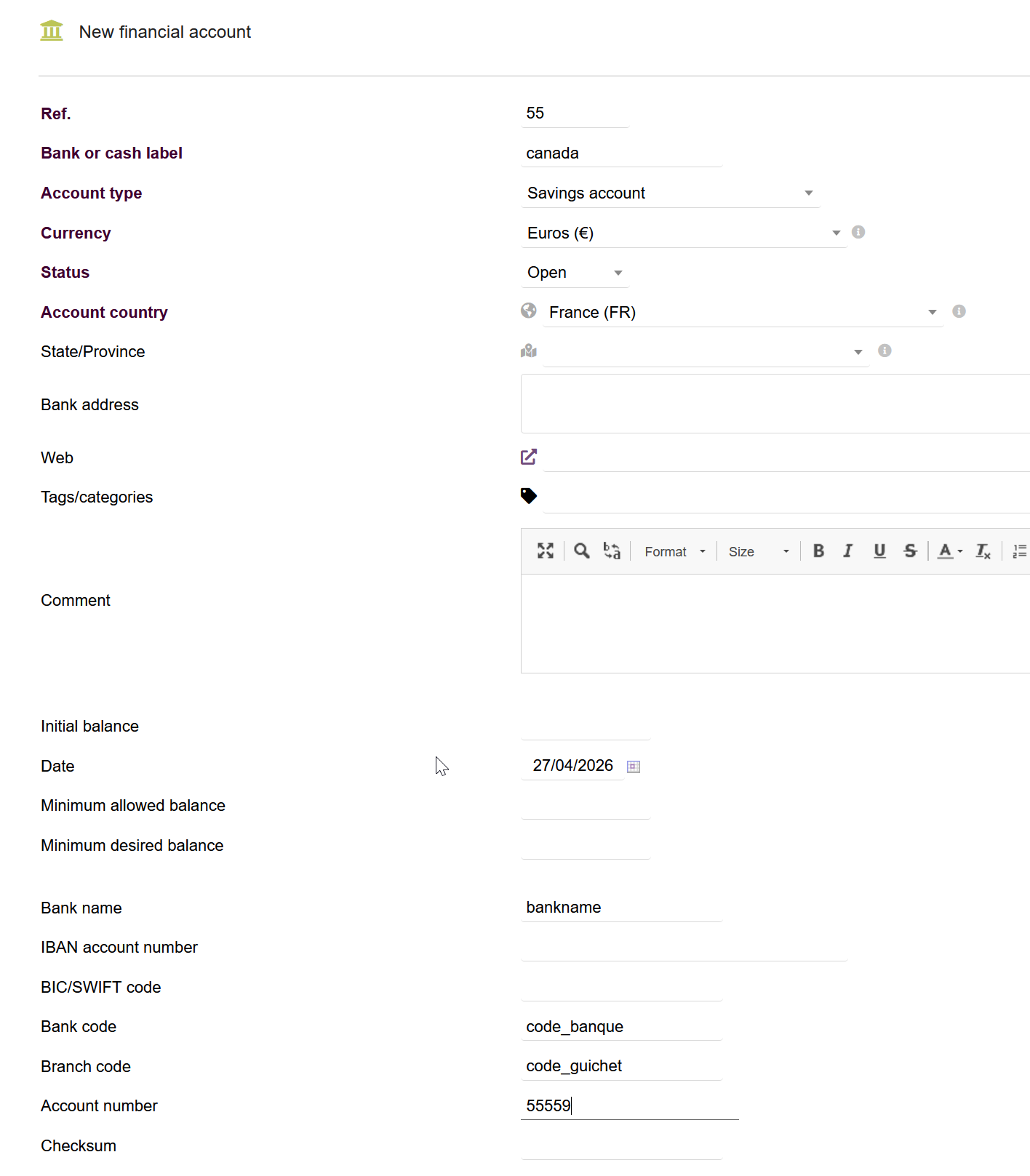

seams to be a bug in Dolibarr. But if you switch the account coutry to France you have all the field:

using Canada as country for the account makes code_guichet disapear.

or you change account.class.php

line 1772:
from:

if (in_array($country_code, array('FR', 'ES', 'GA', 'IT', 'NC'))) {
    return 1; // France, Spain, Gabon, ... - Not valid for CH
}

to:

if (in_array($country_code, array('FR', 'ES', 'GA', 'IT', 'NC', 'CA'))) {
    return 1; // France, Spain, Gabon, Canada, ... - Not valid for CH
}

and line 1775:
from:

if (in_array($country_code, array(‘AD’, ‘AU’, ‘BE’, ‘CA’, ‘DE’, ‘DK’, ‘GR’, ‘GB’, ‘ID’, ‘IE’, ‘IR’, ‘KR’, ‘NL’, ‘NZ’, ‘UK’, ‘US’))) {
return 2; // Australia, England…
}

to:

if (in_array($country_code, array('AD', 'AU', 'BE', 'DE', 'DK', 'GR', 'GB', 'ID', 'IE', 'IR', 'KR', 'NL', 'NZ', 'UK', 'US'))) {
    return 2; // Australia, England...
}

Regards,
Kim

[jonbendtsen]

Shouldn’t the fields be related to where the bank account is, rather than where the company is? @Kim_KW1975 @Stejimenez

[Stejimenez]

Dear jonbendtsen,

You asked whether the fields should be related to where the bank account is located. Yes, absolutely!! they should be tied to the country in which the account is held. A company or individual can maintain bank accounts across multiple countries, and each jurisdiction typically requires different banking details (for example, IBAN, routing numbers, SWIFT/BIC formats, etc.). For that reason, the system should adapt the required fields based on the country of the bank rather than applying a single, uniform structure.

Is there a way to solve the issue of the missing fields withou modifying the Original PHP files?

Additionally, I’ve noticed that my llx_societe_rib table is empty. Is there a specific configuration or setup step required to populate this table?

All the best,

Sterling

[Kim_KW1975]

the fields are related to the banks location not to the company.

[Kim_KW1975]

as mentioned before “It seams to be a bug” the programmer wasn’t aware that the field is needed in Canadas bank system. So the arrey is incorrect. → will post that on Github as bug.

for the time beeing I don’t see any other option. A extra Module just to bring in one field → possible but way too much work.

llx_societe_rib stores the bank details of third parties. As soon as those entered the table will show.

[jonbendtsen]

@Stejimenez

Additionally, I’ve noticed that my llx_societe_rib table is empty. Is there a specific configuration or setup step required to populate this table?

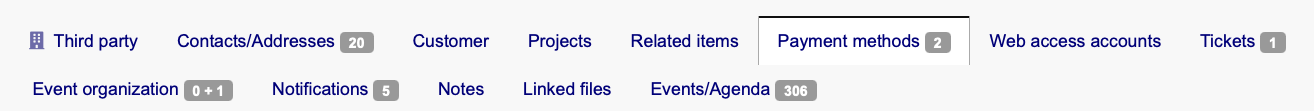

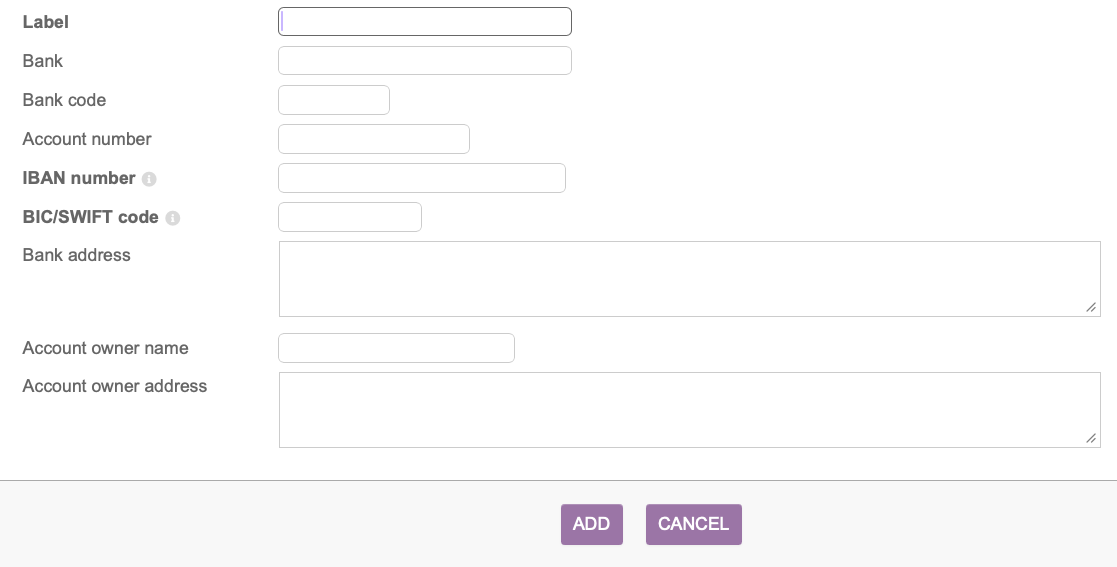

yes @Stejimenez. I think this table is populated if you go to a Thirdparty card and select the Payments Methods tab.

and from here you add 1 or more bank accounts

[jonbendtsen]

@Kim_KW1975 @Stejimenez I do think fixing this requires changes to the core dolibarr bank account form and the handling of it. But I do not think it is hard to fix it @Kim_KW1975

edit edit
Dolibarr (develop branch at least) is hardcoded to ask for

	// Show fields of bank account
	foreach ($companybankaccount->getFieldsToShow(1) as $val) {

So 1 is what it always will ask for, and that function is defined here

htdocs/compta/bank/class/account.class.php

And that function will use the country code of the account to figure out which detailed BBAN it needs to use, but it can not do that without knowing the country_code and the form does not ask about that.

Solution could be:
When loading the form have it prefilled the country and country code with the thirdparty in question or your own company, but make it changeable. Save this to the bank account object, and perhaps it will either reject creation or you’ll have to re-edit the account to get the details correct until some JavaScript is done that changes what is necessary depending on the country selection.

Edit
No it is here

htdocs/societe/paymentmodes.php

Is it asking the necessary questions? The one I see missing is the country for the bank account, but there could be other missing fields. Maybe also ask the country code of the bank account.

Then for Canada you might need a new function like these

if ($companybankaccount->needIBAN() == 1) {
...
if ($companybankaccount->needBIC() == 1) {

and functions like that are defined in this file

htdocs/compta/bank/class/account.class.php

The easily available fields for a company bank account can be seen here

htdocs/societe/class/companybankaccount.class.php

Dolibarr do have a dictionary/database with countries incl. their country code, so maybe just asking on the bank account creation form which bank account the country is located in would be sufficient.

But maybe this table needs a new column like these 2 if there are more countries like Canada

• Europe (EEC)
• SEPA Area

[Kim_KW1975]

sorry I got a little lost in there. I thought it is enough to put Canada to the array like France, Spain,… at least in my testing it worked without any other issues.

[jonbendtsen]

I don’t know the legal requirements @Kim_KW1975 , but I am working on a PR in core dolibarr that enables country, state, currency and status on the account - almost there

NEW Thirdparty bank account asks for bank country, state, currency and status (#38031)

[jonbendtsen]

My PR has been merged, so this functionality should be available in Dolibarr v24 once that is released in a few months?

You can see pictures in the PR linked just above

[Stejimenez]

Could you please also make the update to the company’s bank accounts (not only third parties bank accounts)?

BTW, I decided to go with your solution of adding CA to the list. Works like a charm!

Thanks again,

Sterling

[jonbendtsen]

but that form already have the country fields? - this is where I copied the code from?

What is it you are missing on the company bank account form? @Stejimenez
